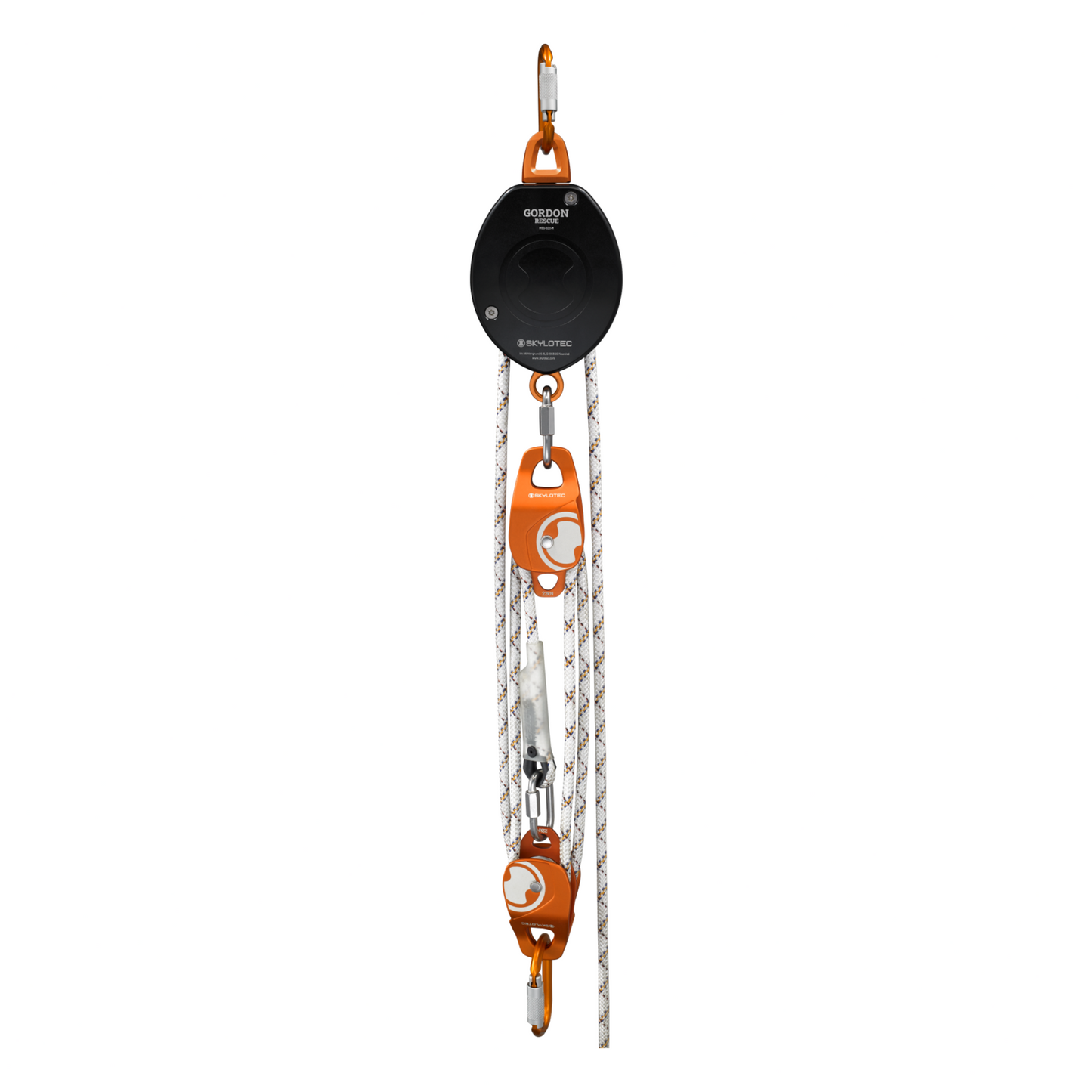

Gordon Pulley System Kit 5:1

Gordon Pulley System Kit 5:1

The 5:1 GORDON Pulley System is amazing and safe for all Wind Turbine tower works! A 50m drop length is perfect for use with the current 160m and higher turbine models.

Self-blocking pulley system with GORDON RESCUE in the 1:5 configuration. This set includes the GORDON RESCUE fall arrester device and the corresponding hardware. The SUPER STATIC 10.5 static rope (item no. L-0741) with sewn eyelets should also be ordered in the required length. The required length can be calculated from the maximum lifting height multiplied by the required ratio (5 in this case). With this pulley system, for example, a lifting height of 10 metres will require a 50 metre long rope.

All GORDON PULLEY SYSTEMS can be loaded with up to 260 kg. Only if the basic unit is used as a fall arrest device according to EN 360, the indication of 140 kg on the unit is considered as maximum user weight.

Rope is custom made for a 50m drop on the 5:1 system, expect a 8-14 week delivery time
