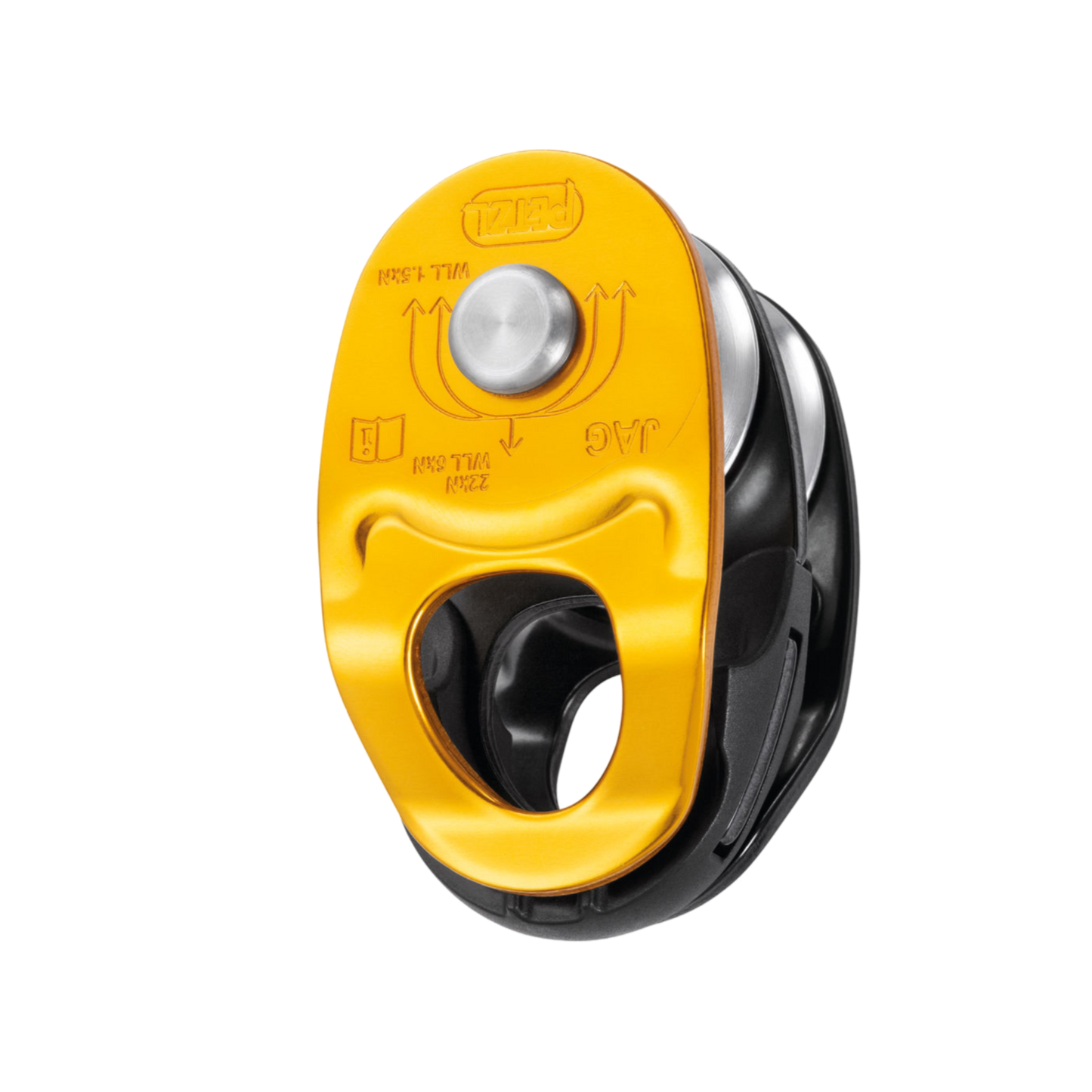

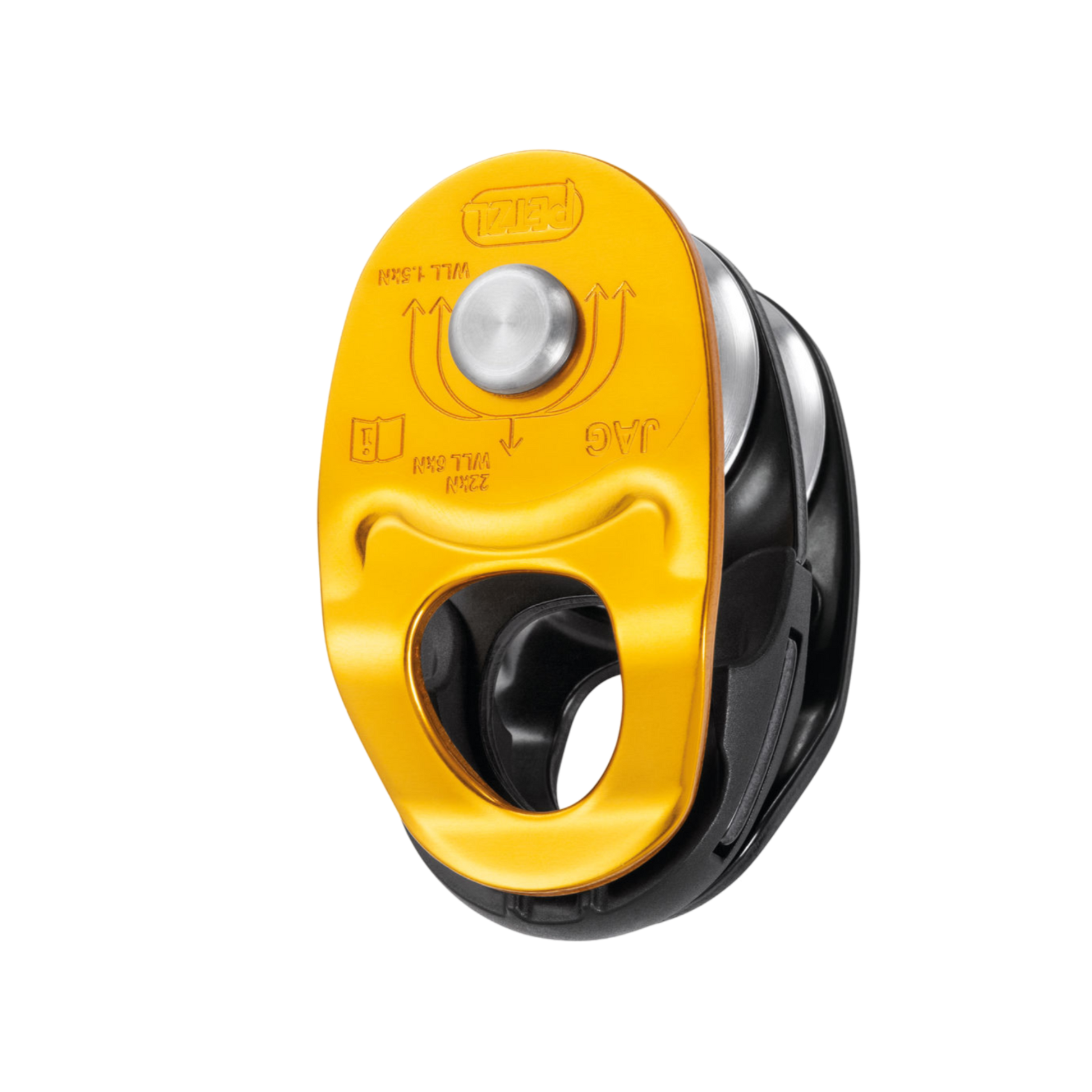

PETZL Jag Pulley
PETZL Jag Pulley
Regular price
$149.95
Regular price
Sale price
$149.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
High-efficiency double pulley
The JAG double pulley is designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system. Sheaves mounted on sealed ball bearings for excellent efficiency.
Description
- Designed for use with the JAG TRAXION double progress capture pulley to make a 4:1 haul system
- Sheaves mounted on sealed ball bearings for excellent efficiency
Specifications
- Weight: 120 g
- Certification(s): CE EN 12278, UKCA, NFPA 2500 Technical Use
- Material(s): aluminum, nylon
- Min. rope diameter: 8 mm
- Max. rope diameter: 11 mm
- Sheave type: sealed ball bearings
- Sheave diameter: 25 mm
- Maximum working load: 2 × 1,5 kN × 2 = 6 kN
- Breaking strength: 2 × 4 kN × 2 = 16 kN
- Efficiency: 91 %
